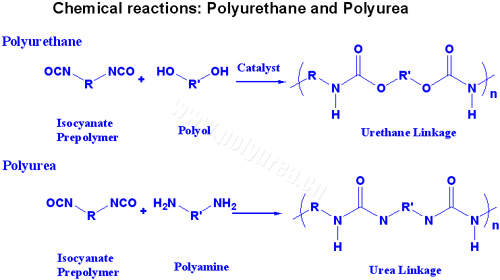

The first thing to notice is that both systems can use the same or similar "A" components. Therefore, the main properties differences are contributed by the "B" component side of the system.

The "B" component of the polyurethane system is comprised of various polyols (polyether, polyester) and normally requires a catalyst in order to cure rapidly. An advantage of the polyurethane system requiring a catalyst is that the catalyst can be adjusted to control the reaction profile to fit the application. Some applications require a smoother finish, and if the system gels too fast, a rough orange peel surface will result.

Furthermore, some applications require the material to flow into the corners or hard-to-spray areas and need a few extra seconds before gelling. This latitude can be accomplished with a polyurethane system choice of catalyst and concentration. The catalyst can be adjusted for a urethane to cure as fast as 10 secs and at low temperatures.

The polyurea system is comprised of polyether-amines or an amine terminated polyol. This polymer is a very reactive polymer and does not require a catalyst (it's an auto-catalytic polymer). This reactivity is typically always fast (in the 5-15 sec range) and cures well on cold surfaces. The reactivity is also so fast and preferential that polyureas in general are moisture insensitive and do not easily react with humidity and moist substrates.

One drawback to the speed of polyureas is that they can be too fast for certain applications that require a smooth surface or a delay time before the system gels.
